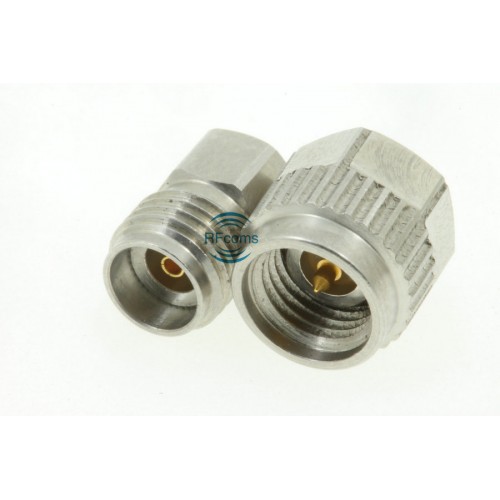

2 Watt 2.92mm RF Load Up to 42.5 GHz With 2.92mm Male or Female Input Passivated Stainless Steel Meet Temperature Shock Test Class C Model 1 Pack
100% quality guarantee
Specifications
Impedance:50ohm
Frequency:DC-42.5GHz
VSWR:1.34 max
Durability:500 cycles
Temperature Range: -55 To+125 degree
Material/Finishing
Housing:Stainless Steel SU303 Polished/Passivated
Center contact:Beryllium Copper Gold plated (MIL-G-45204)
Insulators:PEI/PTFE
2.92mm interfaces PER MIL-STD-348A
2 Watt 2.92mm RF Load Up to 42.5 GHz With 2.92mm Male or Female Input Passivated Stainless Steel Meet Temperature Shock Test
- Brand: rfcoms
- Product Code: TM0240
- Availability: In Stock
-
$80.00
Tags: TM0240
