Key Specifications
| Polarity | Standard |
| Connector Series | SMA |
| Connector Gender | Male |
| Impedance | 50 Ohm |
| Body Style | Straight |
| Attachment Method | Clamp/Solder |
| Mount Method | None |
| Minimum Frequency | 10MHz |
| Maximum Frequency | 18 GHz |
| Maximum VSWR | 1.25 |
| Cable Type | RG047 SS047 RG405 SS405 |
| File Name | Size | Property | Download |
|---|---|---|---|
| SMA male soldering series-RG047 SS047 RG405 SS405 Cable.pdf | 431.5KB | SMA male soldering series-RG047 SS047 RG405 SS405 Cable | DownLoad |

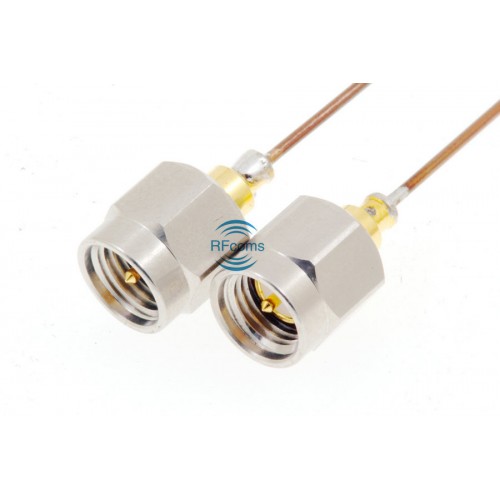

SMA Male Straight Soldering Connector Solder Type for RG047 SS047 RG405 SS405 cable DC-18GHz VSWR 1.25 Max
- Brand: rfcoms
- Product Code: CC0027
- Availability: In Stock
-
$3.00
Tags: CC0027
