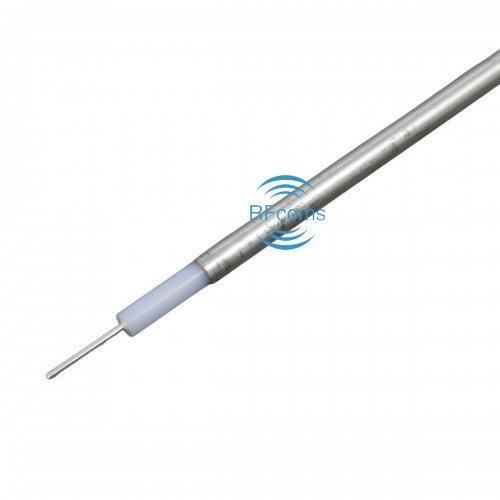

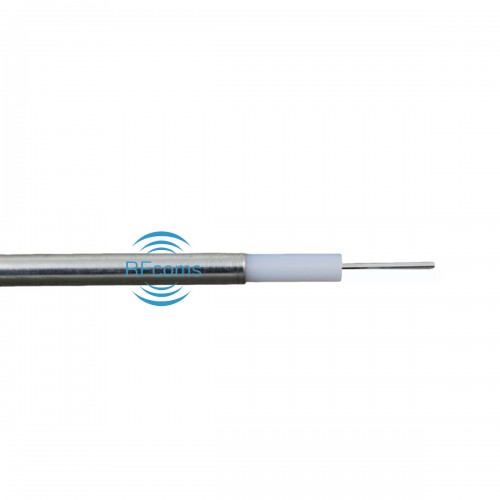

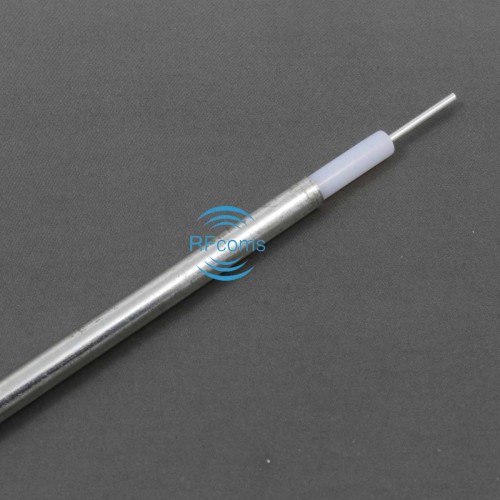

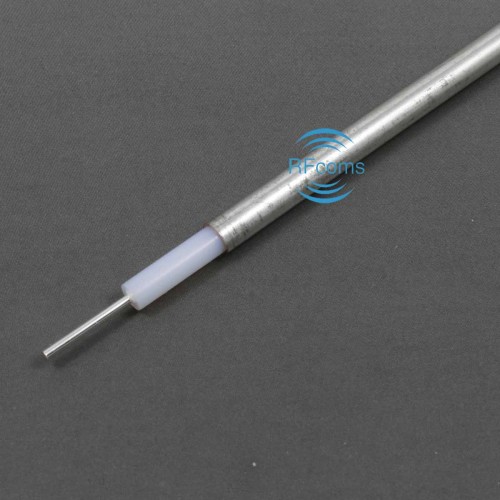

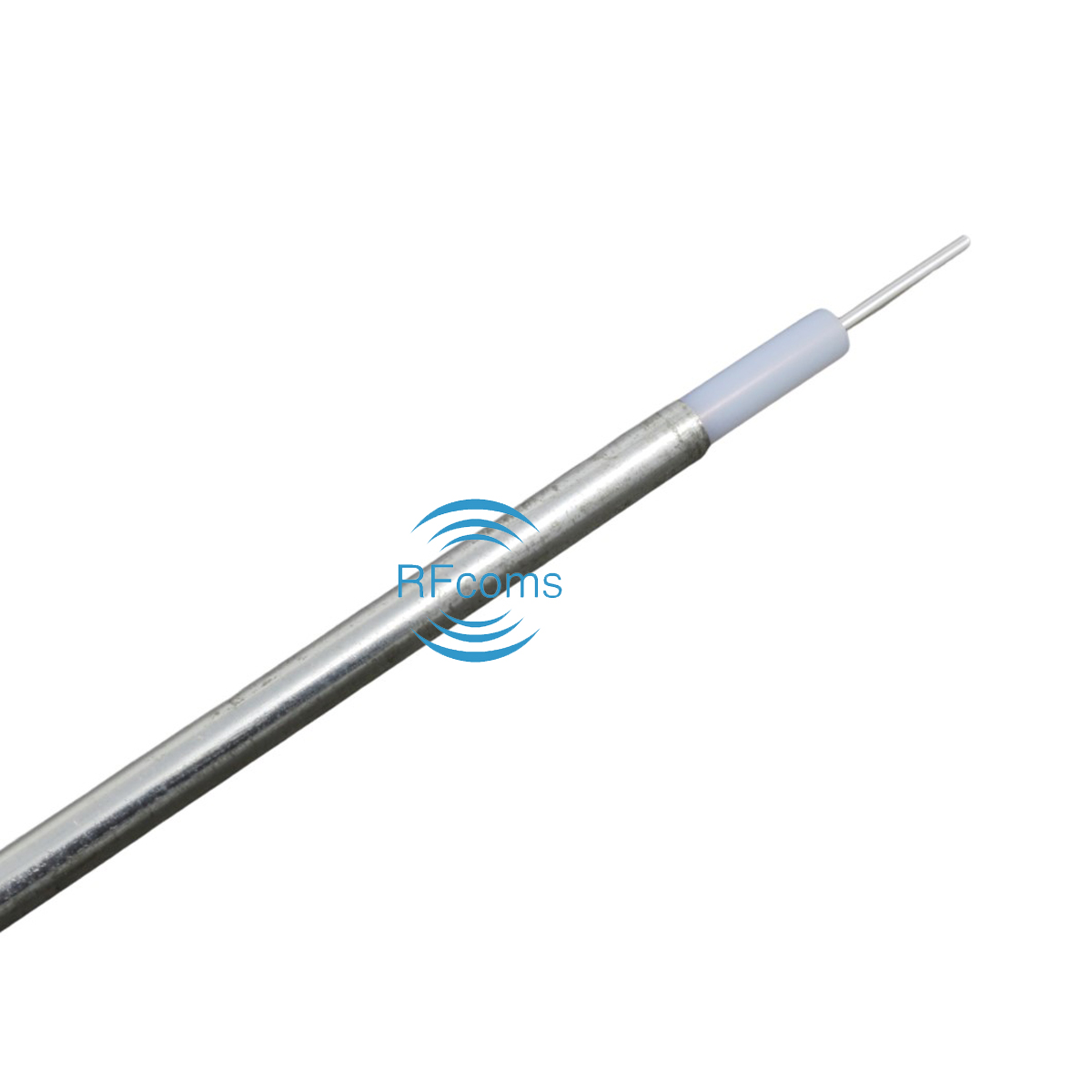

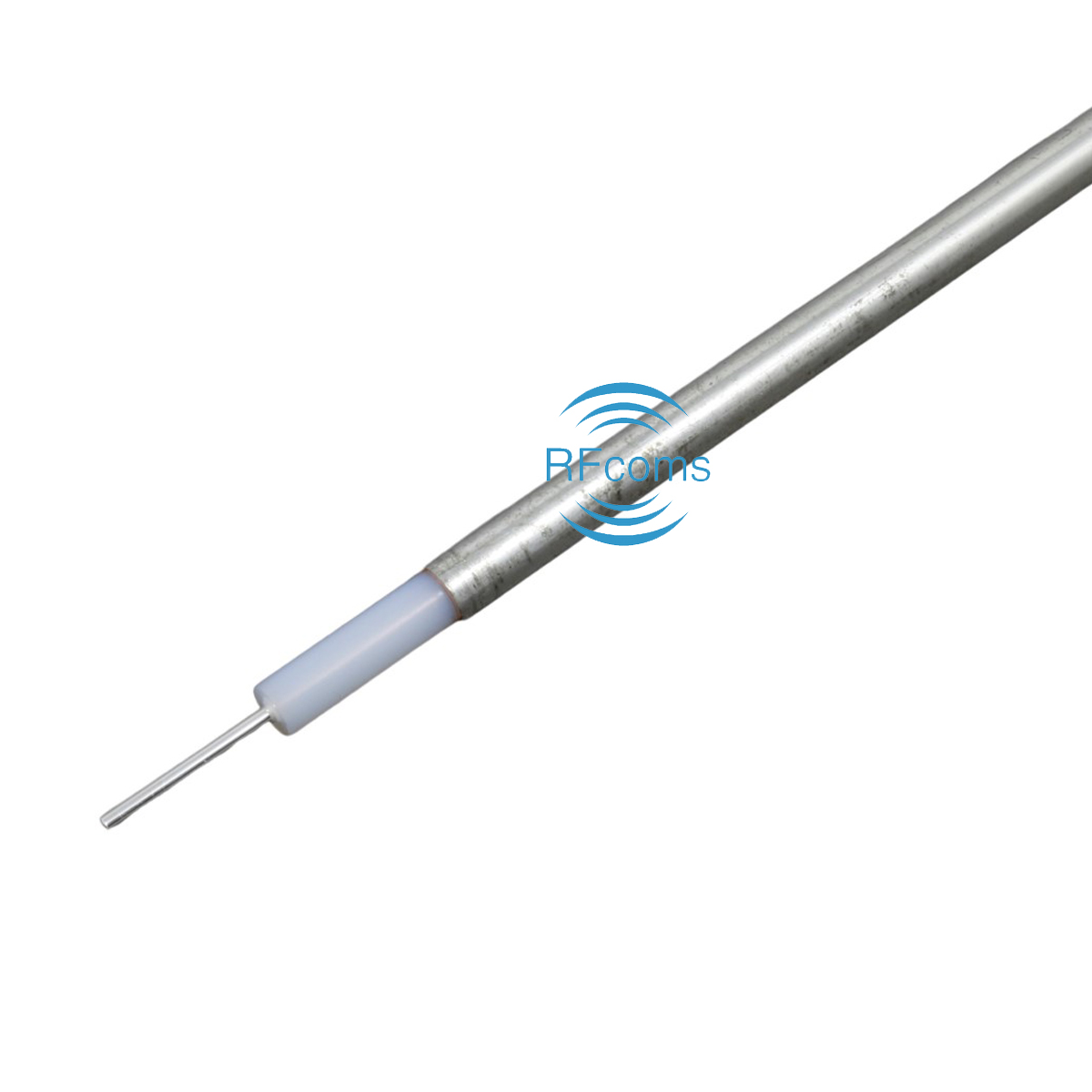

RFSG series semi-rigid cables provide lower loss, lighter weight, higher power handling, and less temperature-related phase change than competing cables. It features a silver-plated copper center conductor, solid PTFE, and a solid copper tube outer conductor and uses the same connectors as standard semi-rigid cable. Typical RFSG cable applications include test setups, interconnection, and instrumentation.

Features

- Low loss

- Light weight

- Higher power handling

- Wide temperature operating range

- Less temperature-related phase chang

Applications

- Aerospace

- Plate-to-plate connection

- Card interconnection

- Cabinet jumpers

- Airborne radar

- Missile systems

- Phased array radars

- Feed networks

- Instrumentation

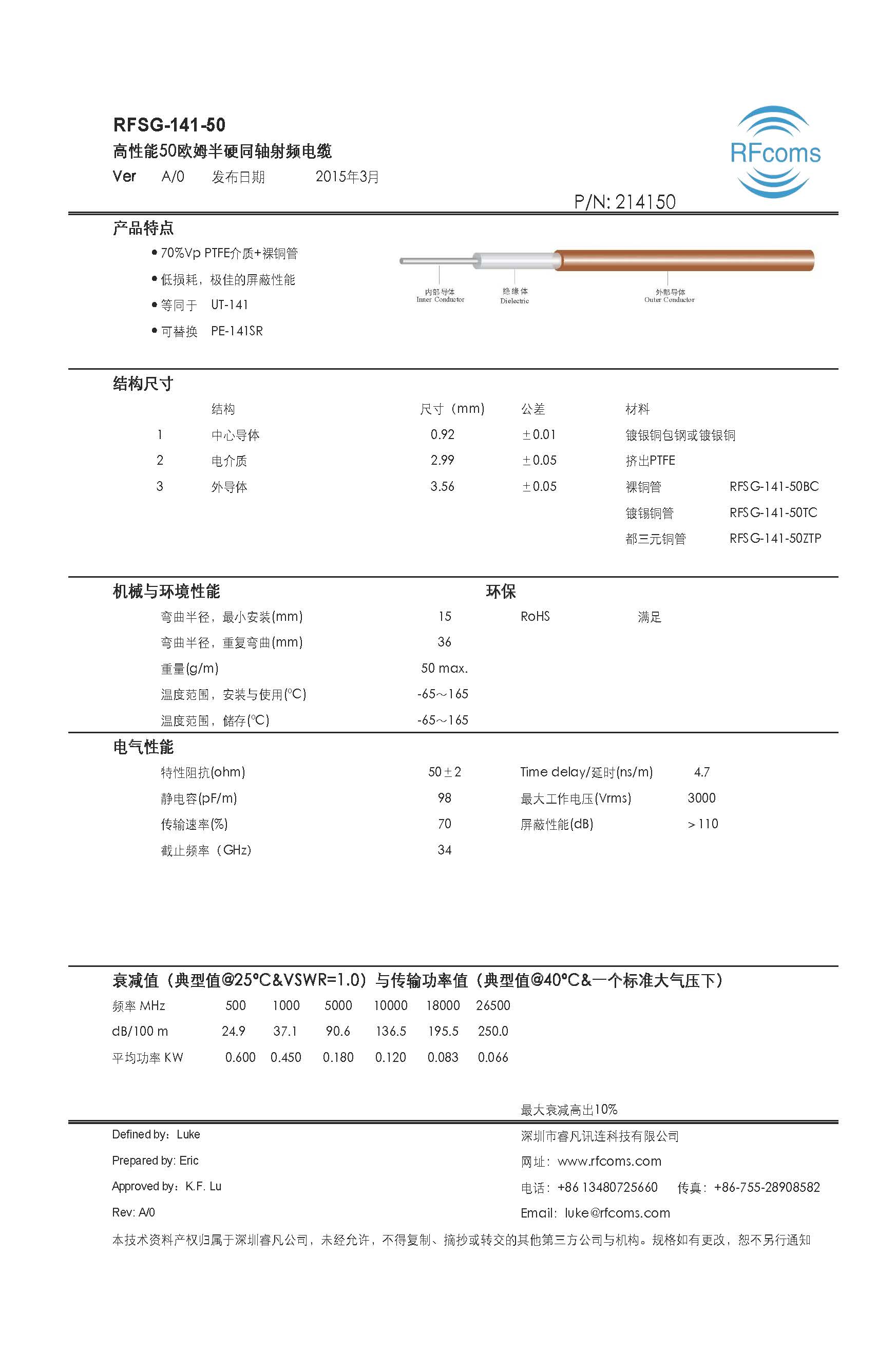

Specification

Item Material Diameter(mm)

1. Inner conductor

SPC 0.92±0.01

2. Dielectric

Extruded PTFE 2.99±0.05

3. Outer Conductor

Bare copper/Tinned copper/ Zinc and tinned copper tube 3.56±0.05
