Key Specifications (Download Data for Additional Details) | |
Generic Name | RG402-6C |
Flex Type | Flexible |
Impedance | 50 Ohm |
Dielectric Type | PTFE |
Velocity of Propagation | 82 % |
Jacket Diameter | 4.10mm |
Jacket Material | FEP |
No. of Shields | 2 |
Frequency, Max | 20 GHz |
Max Operating Temperature | 165 deg C |
Center Conductor Type | Solid |
Inner Conductor, Number of Strands | 1 |
Minimum Bend Radius, One Time | 20mm |

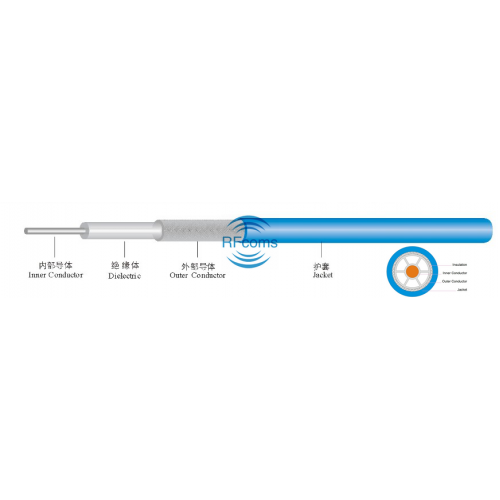

RG402-6C 20GHz Ultra Low Loss Coax Cable Double shields With FEP Blue Jacket
- Brand: rfcoms
- Product Code: RG402-6C
- Availability: In Stock
-
$0.00
Tags: RG402-6C
