RFcoms M8 Sensor Connector Waterproof 8P 8Pin Male/Female Connectors PCB Right Angled Adapter Aviation Panel Mount Connectors EU Industrial Circular Aviation Connector
![](http://www.rfcoms.com/image/catalog/M8 PCB弯针/007.jpg)
![](http://www.rfcoms.com/image/catalog/M8 PCB弯针/M8 电气参数.jpg)

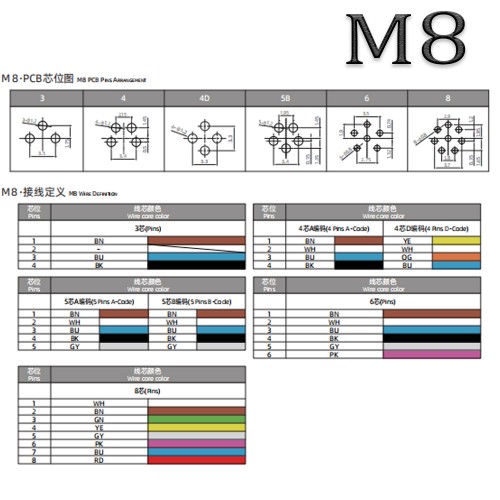

![](http://www.rfcoms.com/image/catalog/M8 PCB弯针/M8 接线定义.jpg)
Specifications:
Rated voltage: 60V
Current per contact ( 40 °C ): Max 4A
Temperature range ( Insulator / Wire ): -45 to 85°C / -25 to 80°C
Protection Class: IP67
Locking type: Screw terminals fix
Contact Material: Brass/Phosphorus copper gold-plated
Contact Impdance:≤5MΩ
Durability:≥500Cycles
Wiring Range: 3.0-5.0mm
Application:
Miniature sensors
Industrial camera
Electrical bike
Packaging, Labeling and Logistic
Factory automation and fieldbus module
Package:
1x Connector
(Kindly Note: We can customise items as your will, please feel free to contact us!)
Shenzhen RFcoms Technology Co.,Ltd
Professional enterprise focusing on Coaxial Cable, RF Connector, Coaxial Adapter, Cable Assembly, Attenuator, M5, M8, M9, M12, M16, M23, M25 Sensor Connector/Cable etc.
Support customized as your will
Contact us:
Darry
Mobile:+86 17881477717
Tell:+86 755 28908582
Fax:+86 755 28908582
Email:darry@rfcoms.com
Website: www.rfcoms.com
RFcoms M8 Sensor Connector Waterproof 8P 8Pin PCB Male /Female Right Angled Adapter Aviation Panel Mount Connectors EU Industrial Circular Aviation Connector
- Product Code: M8 Socket
- Availability: In Stock
-
$0.99
