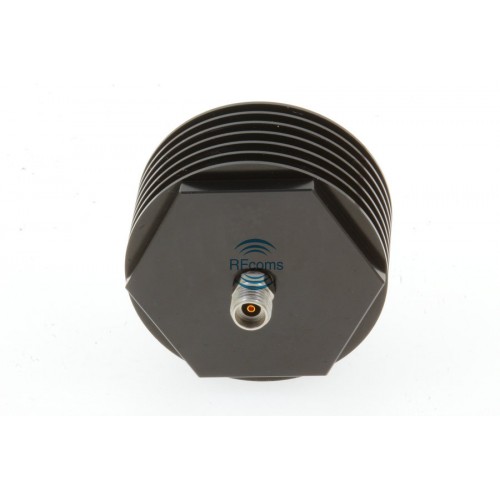

3~40dB Fixed Attenuator 15 Watts 2.92mm Male to 2.92mm Female Passivated Stainless Steel Body Rated  Up to 42 GHz VSWR Less Than 1.38 Class C Model 1 Pack

100% quality guarantee

Specifications

Impedance:50ohm

Frequency:DC-42GHz

VSWR:1.38 max

Durability:500 cycles

Temperature Range: -55 To+125 degree

Material/Finishing

Housing:Stainless Steel SU303 Polished/Passivated

Body:Black Anodized Aluminum Heatsink

Center contact:Beryllium Copper Gold plated (MIL-G-45204)

Insulators:PEI/PTFE

2.92mm interfaces PER MIL-STD-348A
